Connection:

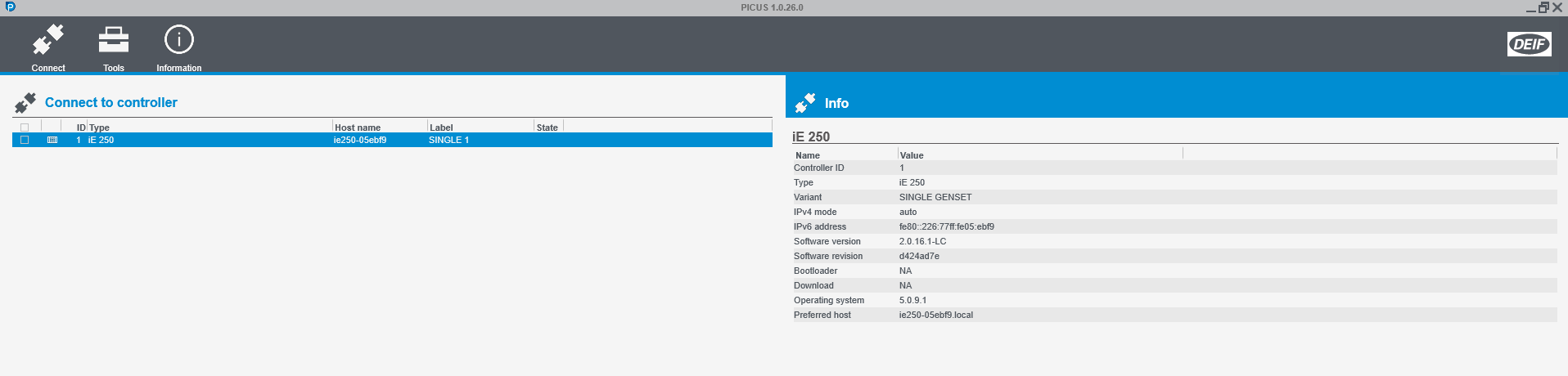

Insert a network cable in your iE-250/350 and open PICUS.

Out of the box the controller will be auto discovered.

Note: if an IP addressee has been set this can be used instead.


Log on:

Standard credentials: User: admin password: admin

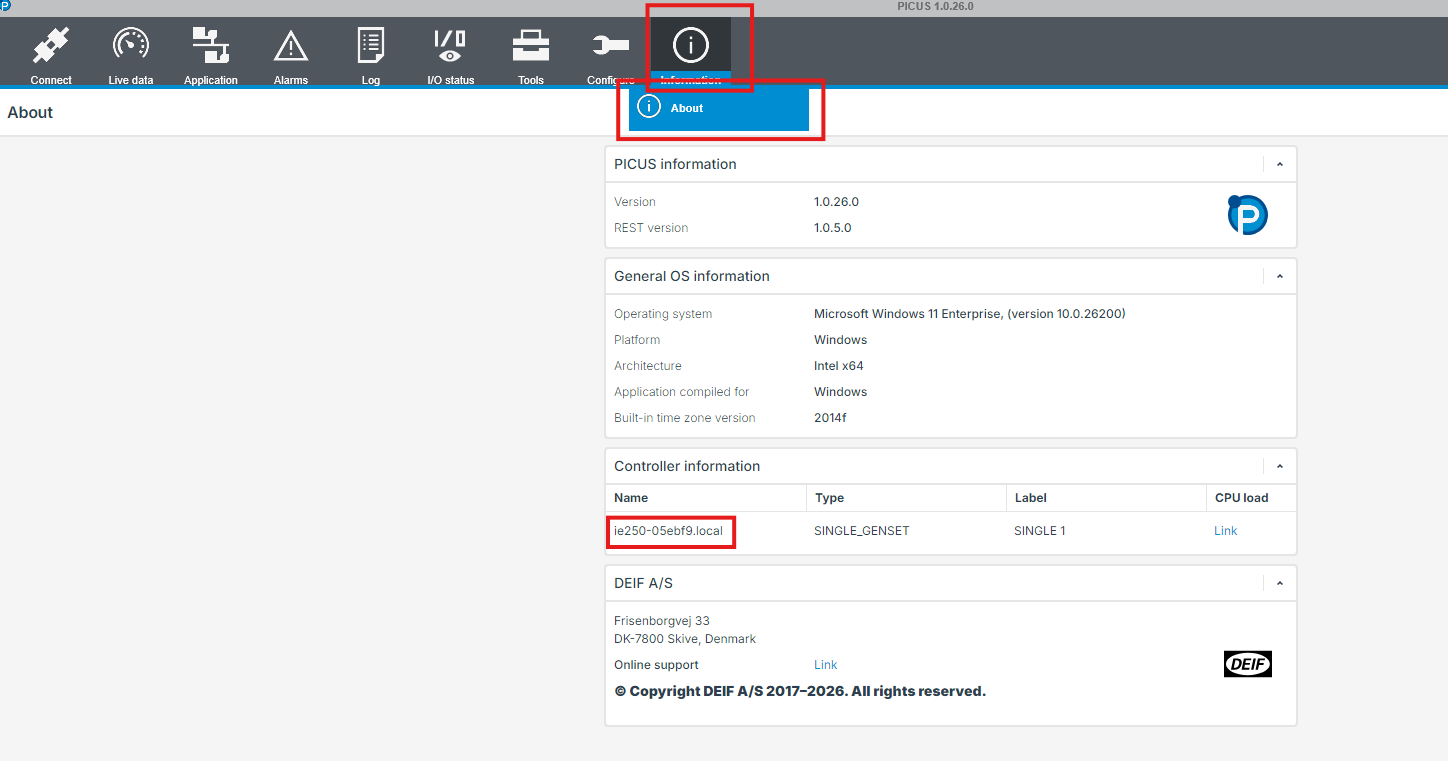

Go to information  -> Controller information: Copy the host name using CTRL + C


Acess to the webpage:

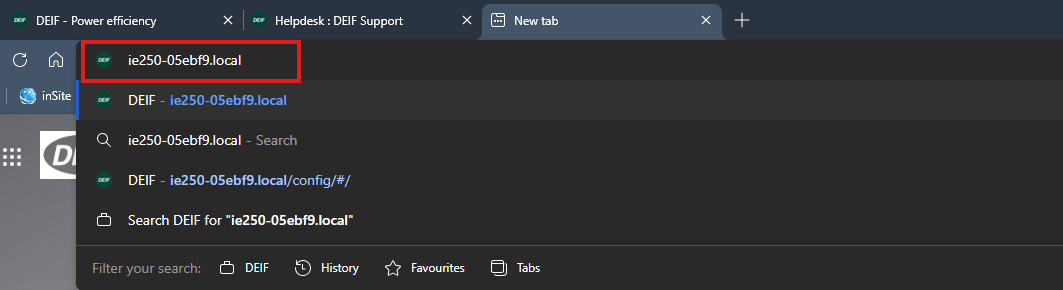

Go to a webpage and insert the hostname or your IPv4 adresse.

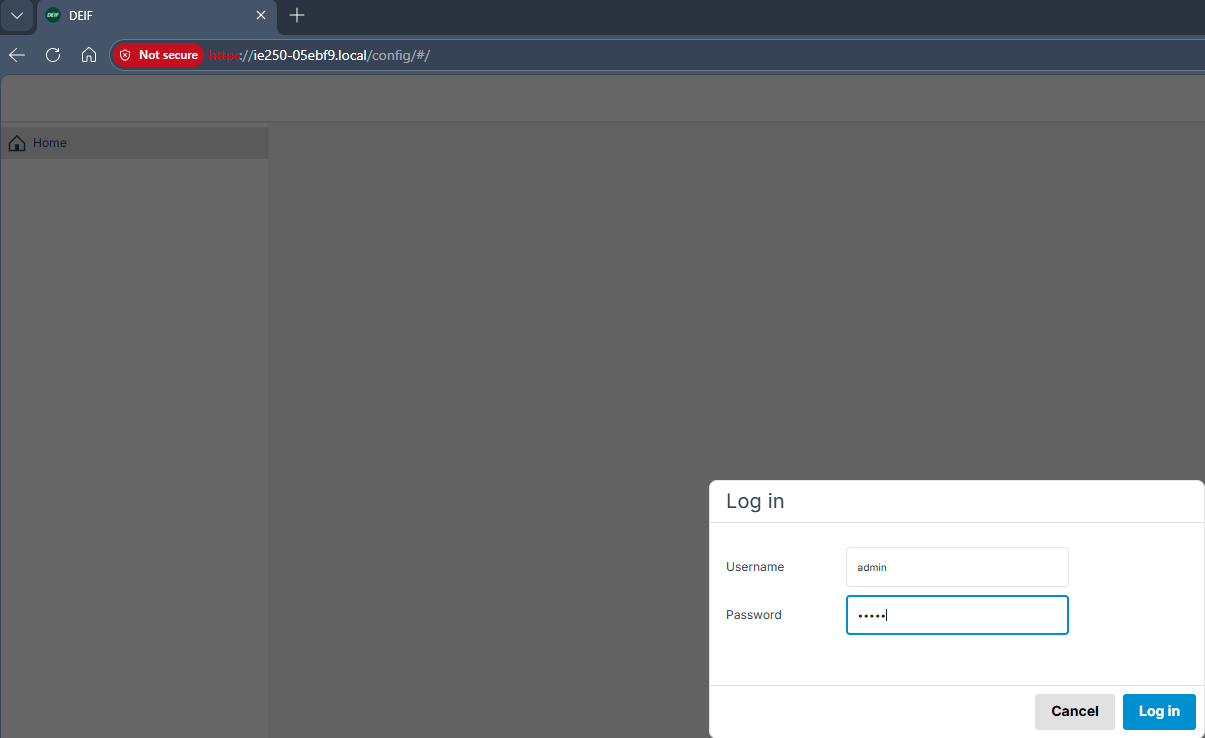

Log In using standard credentials: User: admin password: admin



Navigating the Webpage:

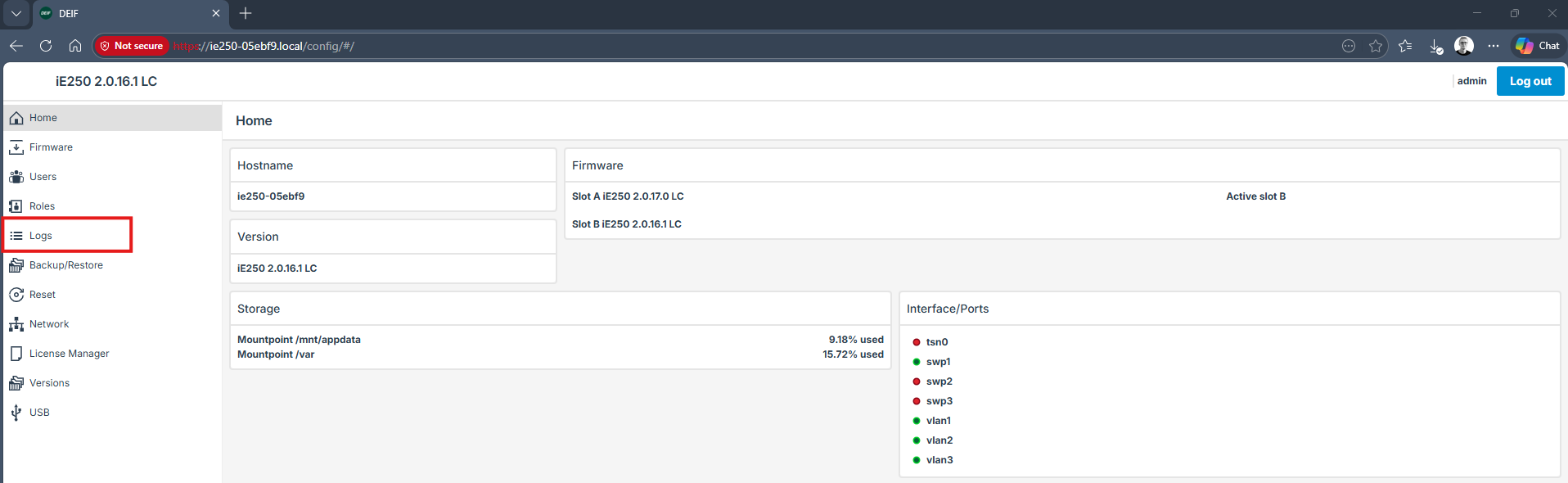

Go to Logs

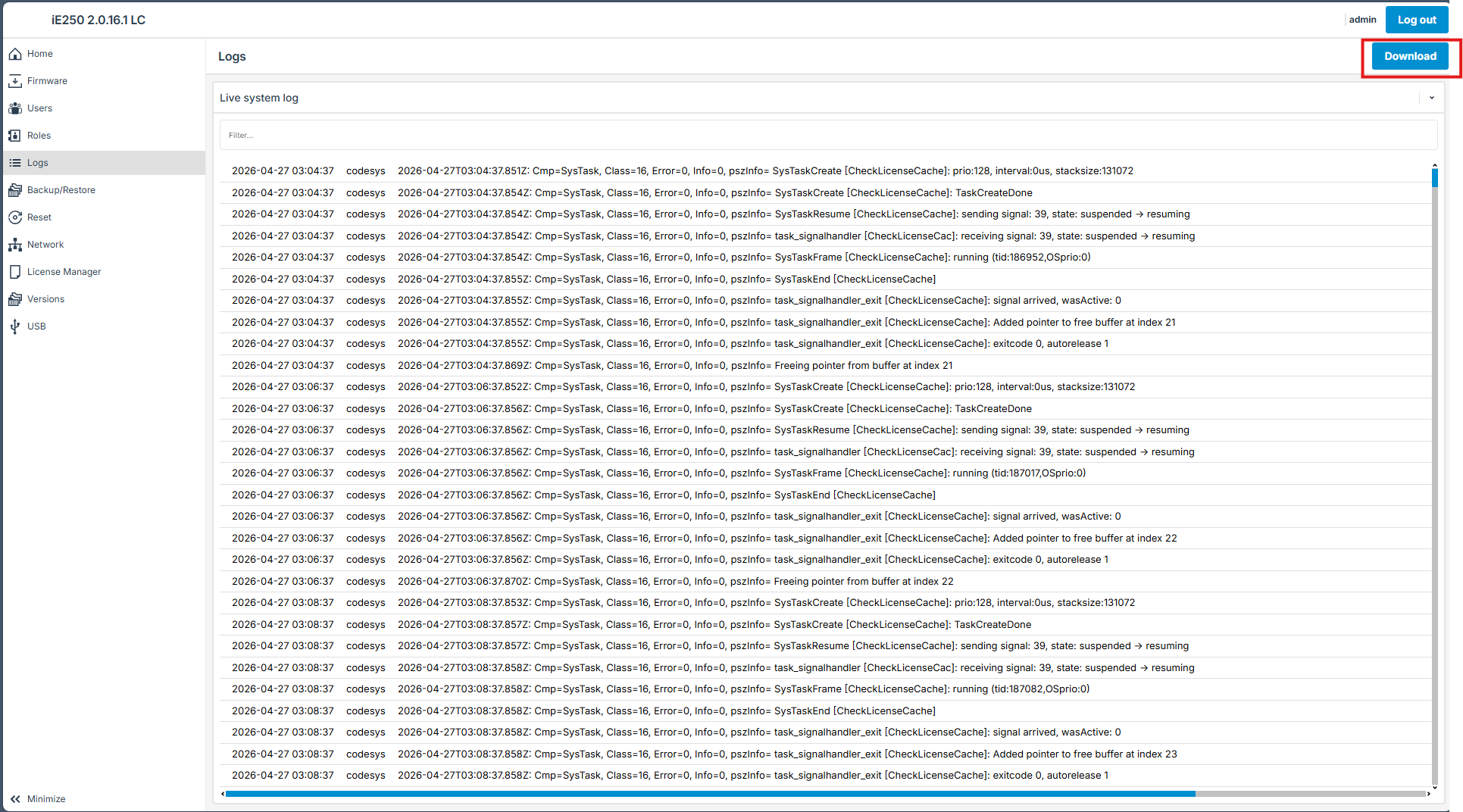

Press Download

  • Set duration ->ALL
  • Types -> SYSLOG

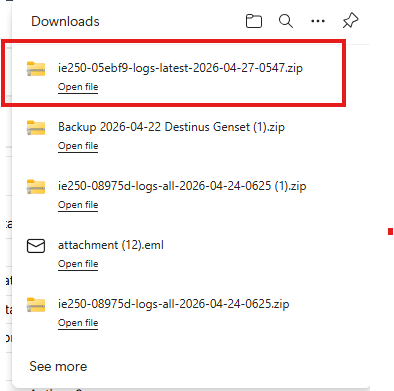

The logs will now be in your download folder:
